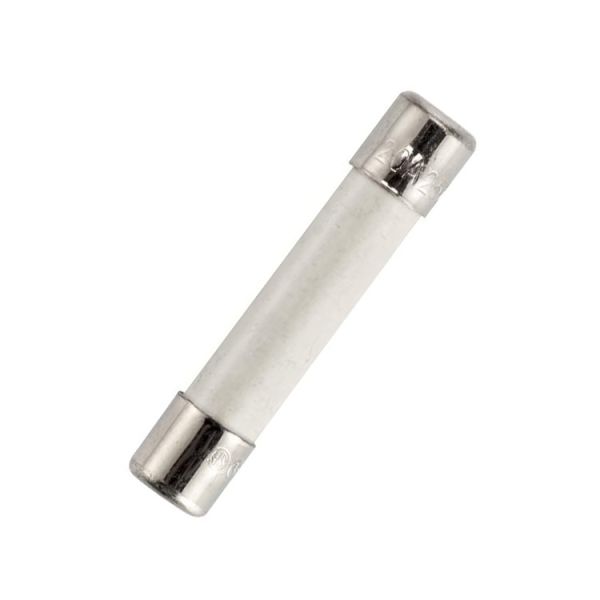

6x32 Cartridge Type 500V 20A Ceramic Fuse With UL Certification

  • 1
  • 2

Brand Name : REOMAX

Model Number : 632.500

Certification : UL cUL

Place of Origin : China

MOQ : 2000

Price : USD $0.15~$0.35 per piece

Payment Terms : T/T

Supply Ability : 300K pieces per month

Delivery Time : 10 work days

Packaging Details : 500pcs per bag, 5000pcs per box, 20000pcs per carton

Type : Ceramic Fuse

Mounting : Cartridge type

Cap material : nickel plated brass

Fusing material : alloy

Voltage Rating : 500V ac

Current Rating : 20A

Fuse Size : 6x32/6.3x32

Standard : UL

RoHS Compliant : Yes

Halogen free : Yes

Contact Now

6x32 Cartridge Type 500V 20A Ceramic Fuse with UL Certification
BMF 6x32 fast blow ceramic fuse.pdf
Description

Item Ceramic Fuse
Standard UL
Blow Type fast acting, slow blow
Body Material ceramic
Fusing Material alloy
Cap Material nickel/silver plated brass
Voltage Rating 500V
Current Rating 20A /20 Amps
Mounting Type cartridge
Size 3AG 6x32 6.3x32 6.35x31.75mm
Certifications cUL UL

6x32 Cartridge Type 500V 20A Ceramic Fuse With UL Certification6x32 Cartridge Type 500V 20A Ceramic Fuse With UL Certification

UL Listed Breaking Capacity:

6x32 Cartridge Type 500V 20A Ceramic Fuse With UL Certification


Dimension & Structure

6x32 Cartridge Type 500V 20A Ceramic Fuse With UL Certification

NO. Part No. Material
① Cap Nickle plated brass
② Body Ceramic
③ Fuse Element Alloy
④ Filler Silica

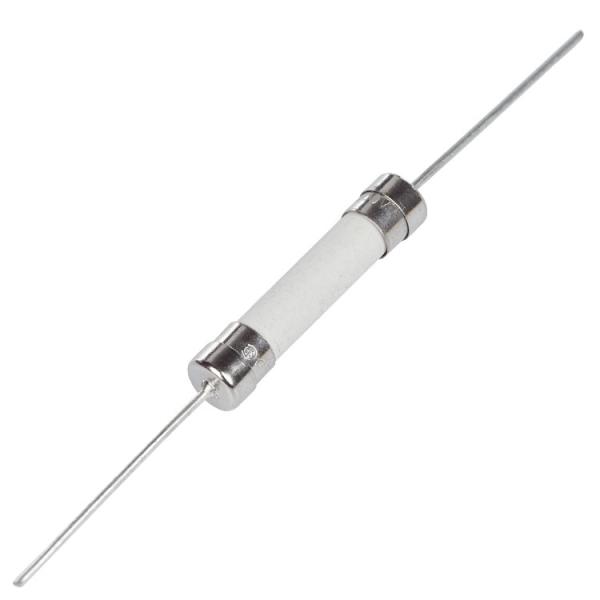

⑤ Leads Tin plated copper



Addtional info

Operation temperature
 -55℃ To +125℃
Warranty Period
2 years
MPQ 200PCS
MOQ 2000PCS

Operating Temperature: -55℃ to +125℃ (Consider de-rating)
Stored condition: at temperature of +10℃~60℃, relative humidity ≤ 75%.
Recommended Soldering Parameters: Soldering pot temperature: 260℃ Max; Solder dwell time: 2∼5s
Resistance to Soldering Heat: 260℃, 10s. (Wave); 350℃, 5s. (Soldering iron)
Solderability: 260℃, ≤ 3s. (Wave); 350±10℃, ≤ 3s. (Soldering iron)
Lead Pull Strength: 5N for 10±1 Seconds
Lead Thrust Strength :2N for 10±1 Seconds

Time vs Current Characteristics
Ampere Rating 100% 200%
Blow Time >4 hours <5 sec

Standard Package

200pcs per bag, 2000pcs per box, 8000pcs per carton

Shipping Term:

EXW, DDU, DDP, C&F, FOB

Shipping Methods:

International Express, By Air, By Sea

Test Equipment
  • 6x32 Cartridge Type 500V 20A Ceramic Fuse With UL Certification
  • Company warehouse
  • 6x32 Cartridge Type 500V 20A Ceramic Fuse With UL Certification
  • 6x32 Cartridge Type 500V 20A Ceramic Fuse with UL Certification
